This is the first and the only Bluetooth4.0BLE (Bluetoth Smart) e-meter in the world. This device connects to a personal computer running Windows 8, 8.1 and 10, Apple Mac OSX, iPhone 5 and later, iPad3 and later, Android 4.4 and later using Bluetooth4.0 interface.
Also this e-meter can be connected to Windows from XP to Windows 10, Apple Mac OSX with a USB micro cable.

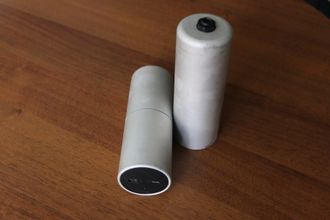

1x Bluetooth4.0BLE USB Theta-Meter e-meter in a 50mm solocan
Additionaly you can order:
- External 50mm can that allows you to work in duo cans mode (for auditing a PC) - $50
- Photo bag for meter transportation - $20
Please advise the additional items you require when ordering.
We do not include a USB cable with the device. Most users already have such cables and USB charging adaptors with a USB micro connector. To save costs and weight we do not include any additional leads or adaptors with the package. If you need a USB micro cable please please request this at the time of ordering.
Cans, leads and bag
Additional cans (electrode to work in duo cans mode or additional duo cans) are not included. Please do not forget to order additional cans available from our shop or request them at the time of ordering. Also if you wish to order the photo bag for convenient transportation of the meter please request this at the time of ordering.
Bluetooth 4.0BLE and USB Theta-Meter e-meter in a solocan features
Battery charge lasts for approximately 50 hours
Time of charging approximately 4 to 6 hours
Bluetooth version: 4.0BLE (Bluetooth Smart) enabled
Bluetooth PIN code: 000000
Suported operating systems
This e-meter works with Bluetooth 4.0BLE communication standard with Windows 8, 8.1 and 10, Android 4.4 and higher, Mac OSX, iOS 8.0 and higher if your device support this Bluetooth standard.
This device does not need any drivers installed, operating systems identify it as a standard Bluetooth4.0BLE device.
The Bluetooth Meter works with a personal computer using a USB cable and running Windows XP, Vista, 7, 8, 8.1, 10, Android 3.0-4.4 (not every Android device supports this type of connection) and Mac OSX.
Setup of Bluetooth connection
To work with an iPhone or iPad there is no need to pair the devices just activate Bluetooth in the Settings.
Android 4.4 devices do not need any pairing. In Android 5.0 and higher activate Bluetooth in the Settings, choose Theta-Meter BT4.0 and enter code 000000.
For Windows 8, 8.1 and 10 press the Start button, choose Settings, then Devices and Bluetooth. Choose from the list Theta-Meter BT4.0 and press the Connect button, enter code 000000.
To provide reliable connection with smartphones disactivate LTE in Settings during sessions. LTE signal could block Bluetooth 4.0 connection.
For Mac OSX no pairing is required.
To activate the Bluetooth Theta-Meter press and hold for 2 seconds the power button at the one end of the device. If the e-Meter is charged and working the green LED start to blink.
To switch off e-meter press power button and keep it pressed for 2 seconds and the device will switch off.
To use the e-meter in duo can mode or to connect an exterior solocan or duo cans, press and quickly release the power button. The green LED starts to blink with 2 short blinks - device is now in duo cans mode. To return to the original condition press the power button for a short time and the device will start to blink once.
To charge the Theta-Meter BT4.0BLE and USB connect the Theta-Meter using the USB to Micro USB cable to the USB port of the notebook, computer or wall socket charger. If the device is discharged a red LED light will display. When the device is fully charged the red LED light no longer displays.
